Product Details
Components:
1.Size:152×92×31mm weight:180g
2.Monitor range:21%--100%
3.It has a response time of typically 6s with accuracy to 99%.
4.A large and ultrathin HD-LCD display imported from US:(58×31)mm
5.Sensitivity:1%
6.Power supply:AC/DC alternative;input 220 V--240V AC 50Hz, output 3.7V DC, detachable and rechargable Li-ion battery:900mAh, serve for 6-10h after fully recharged.
7.Working condition: operating range :0ºC--40ºC, humidity range:10%--95%, atmospheric pressure range: 700hPa--1060 hPa;
8.Storage temperature:-10ºC--50ºC;operating range:0ºC--40ºC; humidity range:10%--95%.
Detailed Images
Company Introduction
Wuhan Darppon is one of the leading medical equipment manufacturers and distributors in China since 2009. Dedicated to product development and production by independent teams, Darppon established Electrosurgical Unit, Patient Monitor, Electrocardiograph and Home Care production lines step by step, and we have passed ISO 1234 and CE certificates for all our products.
Up to now, Darppon specialize in offering more than 100 types of products which including Electrosurgical Unit, Patient Monitor, Electrocardiograph, Medical Imaging System, Infusion/Syringe Pump, Defibrillator, Home Care and Veterinary products etc. At present, Darppon products have been exported to over 100 countries and regions.
Inheriting the people-oriented principle, Darppon endeavor to creates united, competitive and positive working environment for our teams. Also, we always dedicate to research and develop advanced technology and products and hope to bring the highest satisfaction our customers worldwide.
Packaging&Shipping
Multiple delivery solutions, safe, fast, professional !
Components:

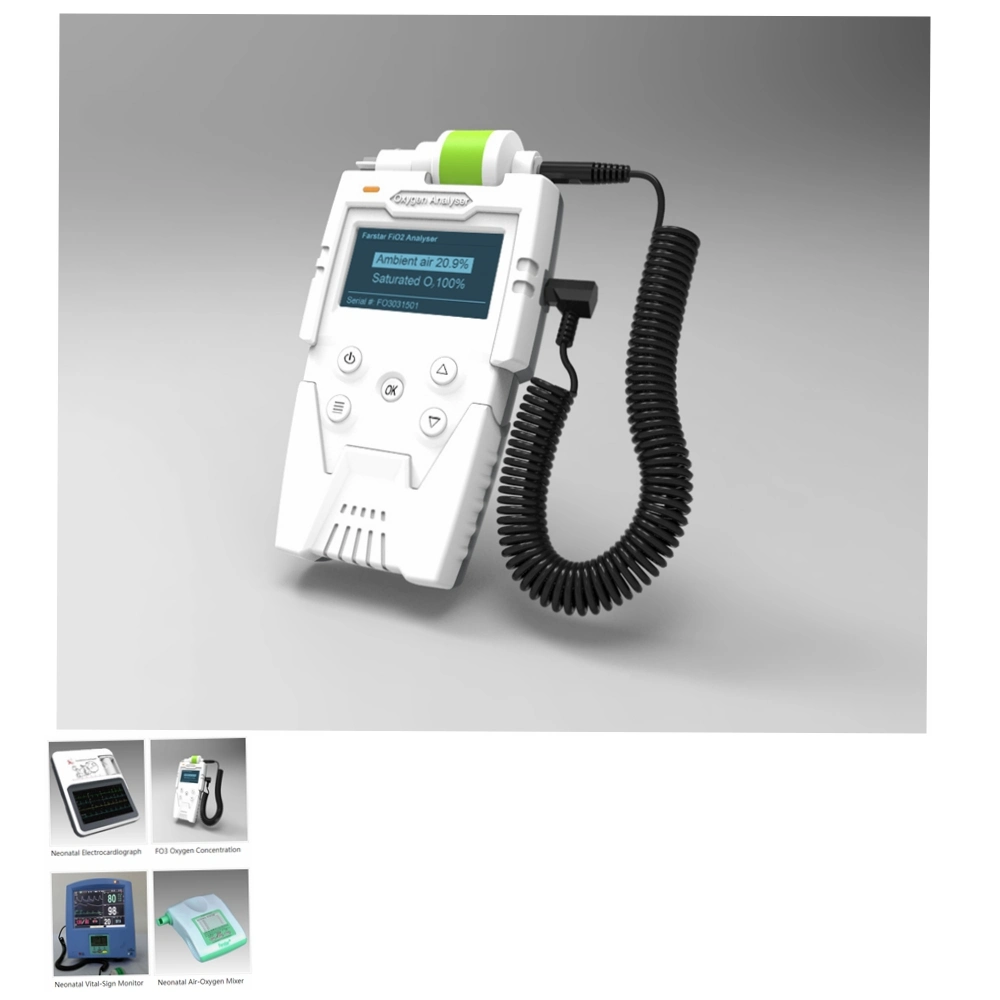

comprised of main unit, oxygen sensor, oxygen sensor cable, power supply, rechargeable battery. International advanced Teledyne R17 oxygen sensor has been used for this analyzer.
Function and Usage:
1. It is designed to determine the concentration of oxygen in gas mixtures within oxygen hood, incubators, air/oxygen mixer, nebulizers, ventilators or other medical device.
★ 2. Alarms adjustable to monitor high/low limits: When the oxygen concentration deviates ±2% from the setting value, the device will alarm automatically.
★ 3. If the oxygen sensor is off or expired, an audible beep alarm will sound.
★ 2. Alarms adjustable to monitor high/low limits: When the oxygen concentration deviates ±2% from the setting value, the device will alarm automatically.
★ 3. If the oxygen sensor is off or expired, an audible beep alarm will sound.
Technical parameters:
1.Size:152×92×31mm weight:180g2.Monitor range:21%--100%
3.It has a response time of typically 6s with accuracy to 99%.
4.A large and ultrathin HD-LCD display imported from US:(58×31)mm
5.Sensitivity:1%
6.Power supply:AC/DC alternative;input 220 V--240V AC 50Hz, output 3.7V DC, detachable and rechargable Li-ion battery:900mAh, serve for 6-10h after fully recharged.
7.Working condition: operating range :0ºC--40ºC, humidity range:10%--95%, atmospheric pressure range: 700hPa--1060 hPa;
8.Storage temperature:-10ºC--50ºC;operating range:0ºC--40ºC; humidity range:10%--95%.
