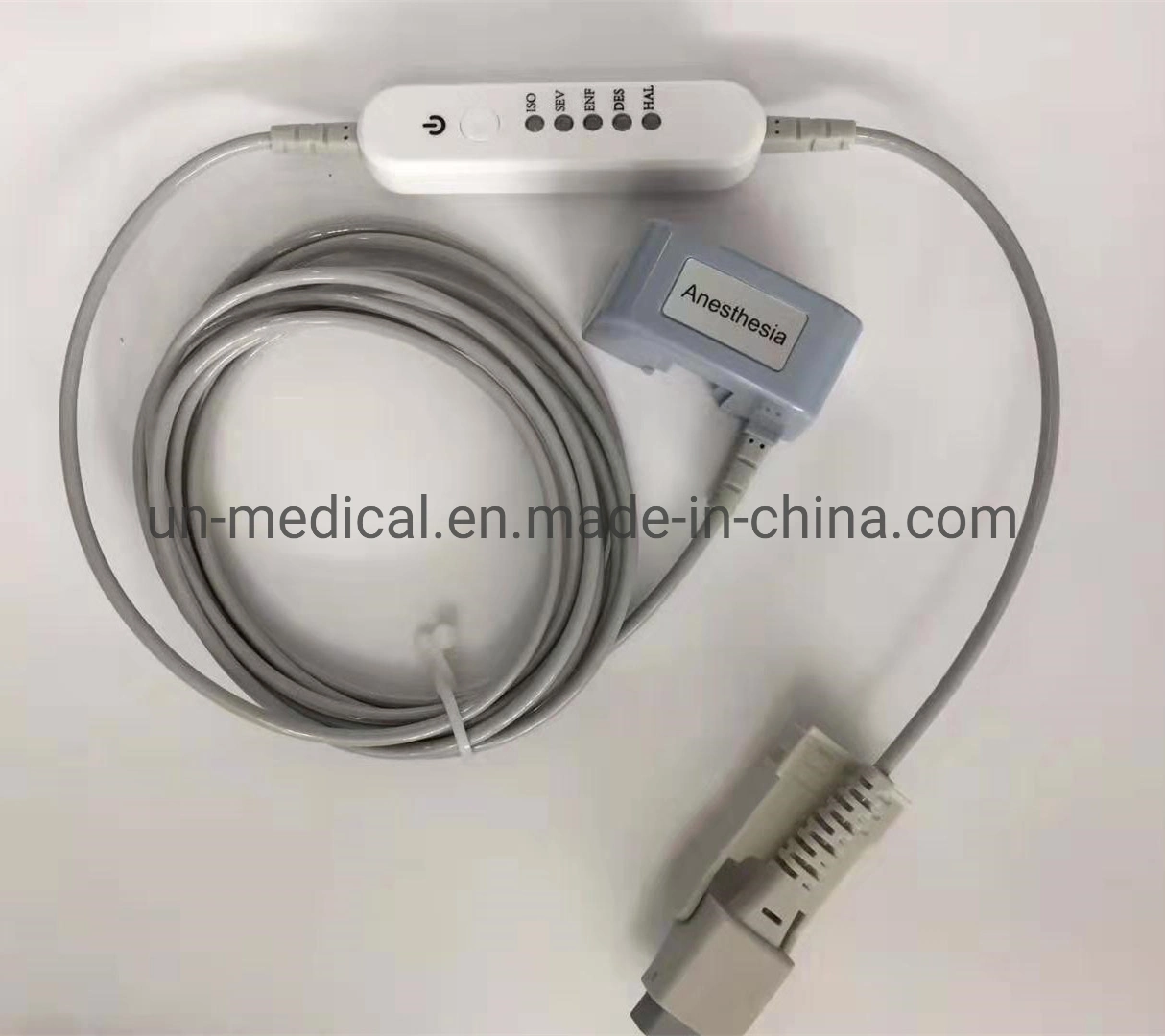

New-external mainstream anesthesia multigas analyser sensor for patient monitor
Product introduction:
The AG200 series multigas analyzer is the ideal low sampling-rate anesthesia solution for your patient monitoring system. AG200 can show an accurate gas concentration with all respiration rates up to 150 breaths per minute. Advanced technology enables AG200 to provide accurate measurement of CO2, NO2,anesthetic agents gas,respiration rate, inspiration time and expiration time. With a sampling-rate low to 50 mL/min, AG200 is ideal for use on adult, pediatric and infant patients; patients undergoing procedural sedation; and short- term monitoring of intubated patients.
Product features:
1. State-of-the-art Non-dispersive infrared (NDIR) technology
2. Co2 N2O and anesthesia multigas monitoring
3. Real-time and continuous measurement of gas concentrations and respiratory rate
4. Anesthesia Gas ID Identify By Manual
5. Barometer pressure and temperature compensation
6. Fast warmup time ensures full accuracy within 2 minutes
7. Low power consumption less than 2W
Technical Specifications:
About us:


Shipping:
DHL, Fedex, TNT, UPS, EMS......
Which ever is convenient for you.
For total weight over 100kgs, shippment by air or by sea is suggested.

Payment:
TT, Paypal & Western union are all fine.

Pls feel free to contact us if you are interested!!! Will always try to reply you within 24 hours after receiving your enquiry.
We are sure we can satisfy you with our full product range, professional knowledge & best after sales support.
Contact person: Shirley

Product name | Multigas module |
Model | AG200 |
MOQ | 1 |
Product introduction:
The AG200 series multigas analyzer is the ideal low sampling-rate anesthesia solution for your patient monitoring system. AG200 can show an accurate gas concentration with all respiration rates up to 150 breaths per minute. Advanced technology enables AG200 to provide accurate measurement of CO2, NO2,anesthetic agents gas,respiration rate, inspiration time and expiration time. With a sampling-rate low to 50 mL/min, AG200 is ideal for use on adult, pediatric and infant patients; patients undergoing procedural sedation; and short- term monitoring of intubated patients.
Product features:
1. State-of-the-art Non-dispersive infrared (NDIR) technology
2. Co2 N2O and anesthesia multigas monitoring
3. Real-time and continuous measurement of gas concentrations and respiratory rate
4. Anesthesia Gas ID Identify By Manual
5. Barometer pressure and temperature compensation
6. Fast warmup time ensures full accuracy within 2 minutes
7. Low power consumption less than 2W
Technical Specifications:
Transducer Type | AG-200 series multigas analyzer | ||
Gas Identify | By manual | ||
Principle of Operation | Non-dispersive infrared(NDIR),no moving parts | ||
Initialization Time | 20 sec, full specifications within 60 sec | ||
Calibration | No routine user calibration required | ||
Compensation | Automatic for atmospheric pressure,temperature | ||
Rise Time | CO2<200ms, N2O, AA<350ms | ||
Respiratory Rate | Range: 3-150 BPM Accuracy: ±1BPM | ||
Breath Detect | Adaptive threshold, minimum 1% CO2 change | ||
Agent Threshold | Agent 0.3vol% | ||
Measurement Accuracy | Gas Type | Range | Accuracy |
CO2 | 0-10% | ±(0.2vol%+2% of reading) | |
10-15% | ±(0.3vol%+2% of reading) | ||
N2O | 0-100% | ±(2vol%+2% of reading) | |
ISO | 0-6% | ±(0.2vol%+2% of reading) | |
ENF | 0-6% | ±(0.2vol%+2% of reading) | |
SEV | 0-8% | ±(0.2vol%+2% of reading) | |
Interface | RS-232 Operaing at 9600bps | ||
Voltage Requirements | 5.0V DC±5% | ||
Power Consumption | Less than 2.0 Watts typical | ||
Temperature and Humidity | Operating: 10-40ºC,10-90% RH,non-condensing Storage: -40-70ºC,<90%RH, non-condening | ||
Size | 96*57.5*30mm | ||
Weight | 102g |
