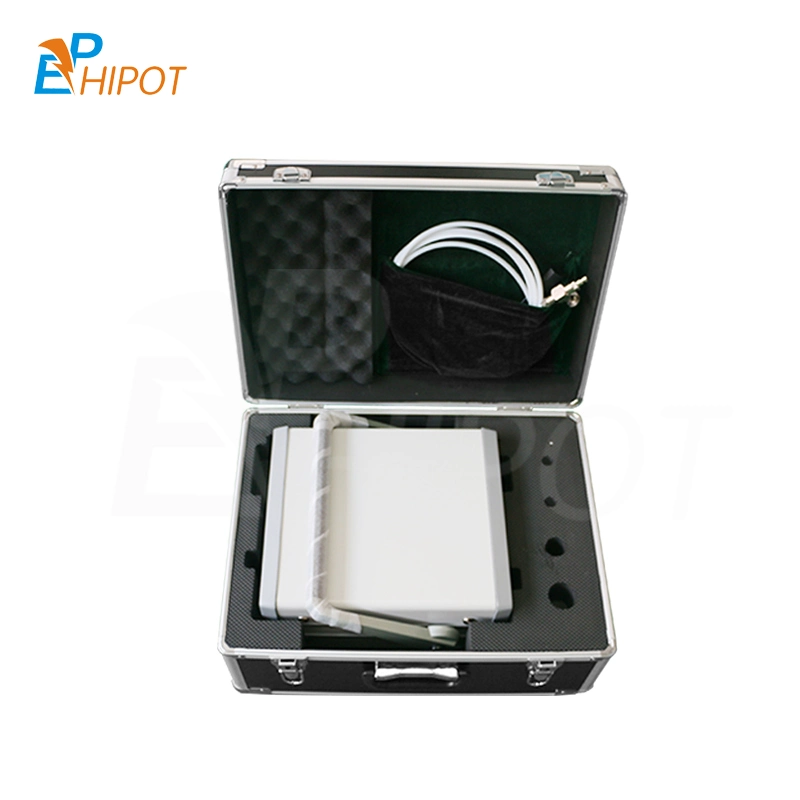

EPFZ-III
SF6 ANALYZER
General Information:
EPFZ-III SF6 gas analyzer can measure the humidity (dew point), purity and decomposition in one unit. The analyzer can also combine humidity (dew point), purity and decomposition products, or measure any of these parameters.
The analyzer uses color liquid crystal display in English, real-time display of various parameters, full intelligent operation, mass information storage, built-in rechargeable battery, both AC and DC dual-purpose.
Features:
Specification:
More details please contact EP Hipot Electric, we have professional tech team to design correctly designed products and systems.
SF6 ANALYZER
General Information:
EPFZ-III SF6 gas analyzer can measure the humidity (dew point), purity and decomposition in one unit. The analyzer can also combine humidity (dew point), purity and decomposition products, or measure any of these parameters.
The analyzer uses color liquid crystal display in English, real-time display of various parameters, full intelligent operation, mass information storage, built-in rechargeable battery, both AC and DC dual-purpose.
Features:
- The decomposition product and purity can be measured all in one. A single measurement can complete a number of indicators detection.
- All imported precision sensors, dew point measurement automatic zero calibration, anti-oil pollution, anti-drift.
- Electronic flow display, electricity display.
- Supporting file system, measuring data storage and printing.
- Analyzer self-diagnosis function, intelligent power display.
- Support data communication.
- Long-term stability, reliability and high repeatability.
- Wide measurement range, high accuracy and quick response.
- Small size, intellectualization and complete functions.
- It has the function of fast data storage and query.
- AC/DC dual-purpose, built-in rechargeable lithium battery, can work continuously for hours.
- The probe is not affected by condensation, special pollution, oil and gas, and most chemical environments.
- The patented technology is used to protect the gas chamber and speed up the measurement.
Specification:
| SF6 Dew Point | |||
| Measuring Range | -80ºC~+20ºC | Precision | ±0.5ºC |
| Resolution | Dew Point 0.1ºC or 0.1ppm | Repeatability | ±0.4ºC |
| Measuring Duration | 63%[90%] +20~-20ºC Td 5s[45s] -20~-60ºC Td 10s[240s] | ||
| SF6 Purity | |||
| Measuring range | 0~100% | Precision | ±0.3% |
| SF6 Decomposition | |||
| Measuring range | H2S:1~200ppm(Option) SO2:1~100ppm(Option) HF: 0~10ppm(Option) CO: 0-1000ppm(Option) | Sensitivity | 0.1ppm |
| Measuring Duration | 90%, 15s | ||
| Sampling | Built-in pressure regulator, filter, electronic flowmeter | ||
| Working Supply | Both AC/DC, built-in large capacity rechargeable batteries. Can work continuously for several hours after charging full. | ||
| Communication Interface | USB | ||
| Weight | About 5kg | ||
