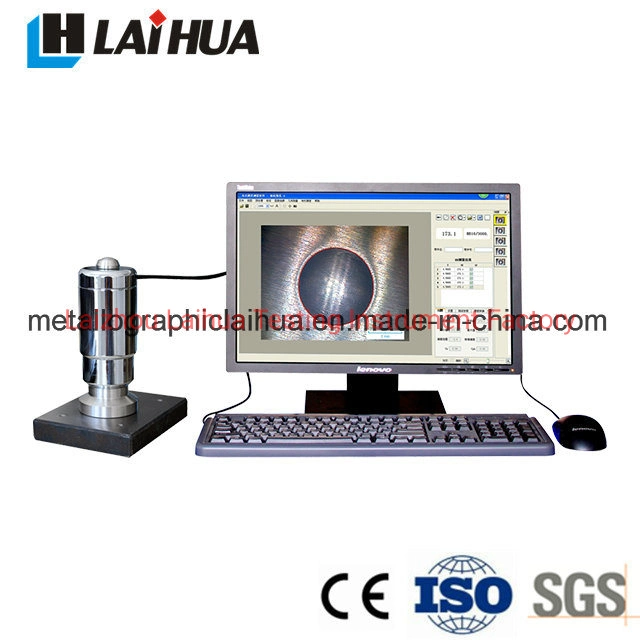

Automatic Digital Brinell Indentation Measurement System China/Brinell Impression Measurement Systems
The main functionalities of iVision-HB include:Portable USB camera with multiple configurable magnifications: 4 magnifications to cover the full measurement range from 0.8mm to 6mmOS supported: Windows XP, Windows Vista, Windows 7 and 8 32 and 64 bitsAutomatic HB Measurement: Automatically finds the indentation circle and calculates the HB hardness valueManual correction: Test result can be manually corrected with a simple mouse drag moveStatistics: Automatically calaulates the average hardness and its standard deviationOut of bound alert: Automatically marks the hardness data outliers and the out of bound data pointsData archiving: Test results including measurement data and measurement images can be saved in a fileReporting: Test results including measurement data, measurement images can be outputed to a Word document. User can customize the report template.Other functions: Inherits all the functions of iVision-PM Geometry Measurement Software
Company Information:
Laizhou LaiHua Testing Instrument Factory was founded in 2010,which specializes in the manufacture of hardness testers and metallographic equipments for metaland nonmetal materials. Besides, we can also design special, large-scale dedicated machines according to the requirements of customers.
FAQ:
1, Min. Order Quantity
1 piece
2, Our technical team construction.
We have professional technicians with several years' experience.
3, What's our warranty?
12 months
4, Ways of payment
T/T, L/C, Pay pal, Western Union
5, Ways of shipment
EXW, FOB, DHL, FedEx, or upon your requirements
6, Are you a trader or manufacture?
We are manufacturer
